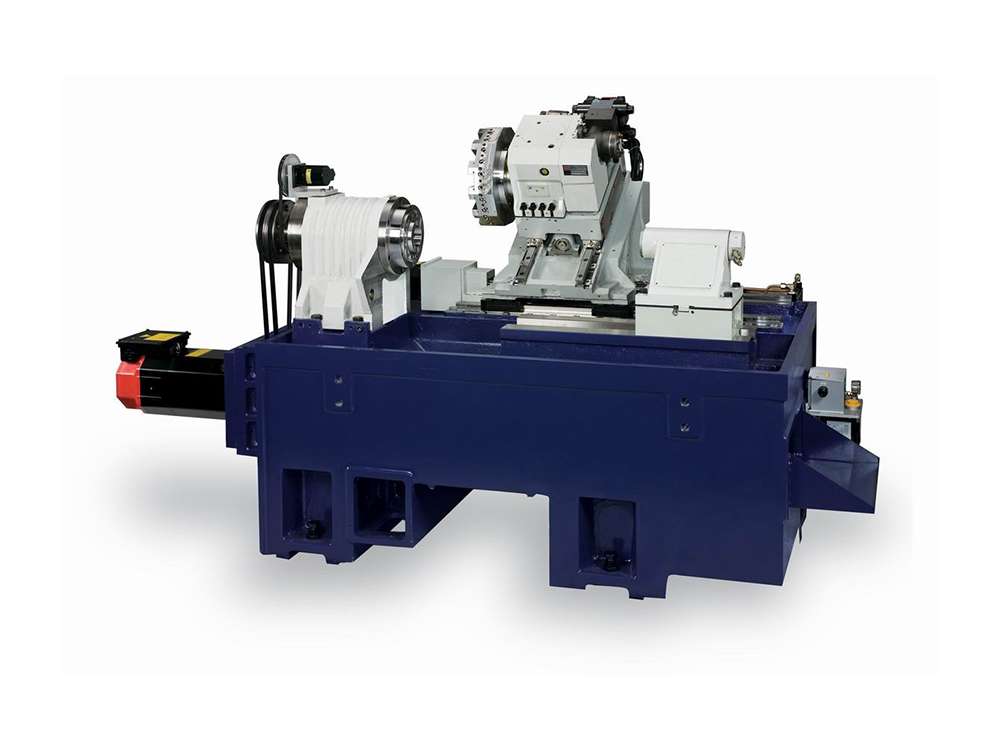

Technical Specifications
| Chuck Size |
8" |
| Maximum Turning Capacity |
Ø 420 mm |
| Maximum Turning Diameter |
Ø 320 mm |
| Turning Length |
480 mm |
| Lantern Spindle RPM |
4.500 rpm/min |
| Spindle Motor Power |
15,0 kW |
| X, Y Axis Travel |
180 x 480 mm
|
| Turret Type |
Hydraulic Turret - 10 Stations |
| Weight |
3.350 kg |
Accessories / Hardware
FANUC 0i-TF Plus Cnc Control Unit
10.4’ LCD/TFT Colour Screen
Ethernet Connection Unit
RS-232 Connection Unit
CF Card Reading Slot, USB Reading Slot
C-3 Quality Pre-tensioned Ball Screws
X, Z Axes High Precision Linear Guideway
‘MEEHANITE’ Strength Investment Casting Body Structure
Hydraulic 10 Station Turret
RENISHAW Fully Automatic Tool Measuring Arm
8’ (Ø200 mm) 3 Legged Hydraulic Chuck
Fully Enclosed Cabin,
Safe Non-Scatter Tempered Cabin Glass
Cabin Lighting System
3 Colour Alarm Lamp
Programmable Central Lubrication System from Automatic (Alarm) Unit
Stainless Telescopic Slideway Protector System in X, Z Axes
Belt Type Chip Disposal Conveyor & Chip Trolley
Automatic End of Programme Worktop Shutdown Function
Handwheel (Manual Pulse Generator)
Electric Cabinet Heat Equalisation System
Soft Foot Set (5 Sets)
Hard Foot Set (1 Set)
Rotary Tailstock Set (1 Set)
Morse Conical Set (1 Set)
Standard Tool Holder Set (1 Set)
Suits & Suit Bag
Bench Use and Maintenance Books
FANUC Programming and Operating Books (USB)
Electrical and Safety Equipment in accordance with CE Norms
1 Year Mechanical Bench Warranty Against Production Defects
2 Year International FANUC Control Unit Warranty
